VSS for RockShox Lyrik & ZEB

VSS for RockShox Lyrik & ZEB

$79.00 CAD
$79.00 CAD
Sale Sold out sorry :(
Shipping calculated at checkout.
Step 1 — Choose your VSS version
Step 2 — Choose your nozzle

Adaptive Air Token for RockShox Lyrik & ZEB

Patent Pending Technology

Compatible with RockShox Lyrik and ZEB (Solo Air, DebonAir, DebonAir+). Works with or without ButterCups. The VSS is also compatible with RockShox BoXXer when equipped with the correct nozzle. Not compatible with 32mm forks, Gold/Silver models, or Dual Position air springs.

Run lower pressure. Get controlled support. Stay higher in the travel when it matters.

This version is optimized for the operating pressures commonly found in RockShox Lyrik and ZEB forks. It delivers strong adaptive support while maintaining excellent small-bump sensitivity and predictable performance.

More Grip Lower pressure, better traction
Adaptive Support 1 to max tokens on demand
Zero Maintenance 100% plastic, no moving parts
⚠️ Higher-Pressure Forks & Nozzle Selection

The VSS token itself is identical across all compatible RockShox forks. The only difference is the nozzle.

BoXXer forks and the new 2027+ Lyrik Ultimate & ZEB Ultimate with the Linear XL air spring operate at significantly higher air pressures than previous Lyrik and ZEB models. As a result, they typically require much larger nozzle sizes.

Important: Always use the VSS Configuration Tool to select the correct nozzle and tune for your fork. Using a nozzle intended for a lower-pressure fork can make the suspension excessively harsh and may damage the VSS.

VSS Configuration Tool (Required)

Nozzle and VSS tune selection depends on your fork model, air spring, air pressure, and riding style. The VSS Configuration Tool determines the correct setup in less than 30 seconds, including the new 2027+ Linear XL forks.

→ Open VSS Configuration Tool

Every kit includes additional nozzles for fine tuning.

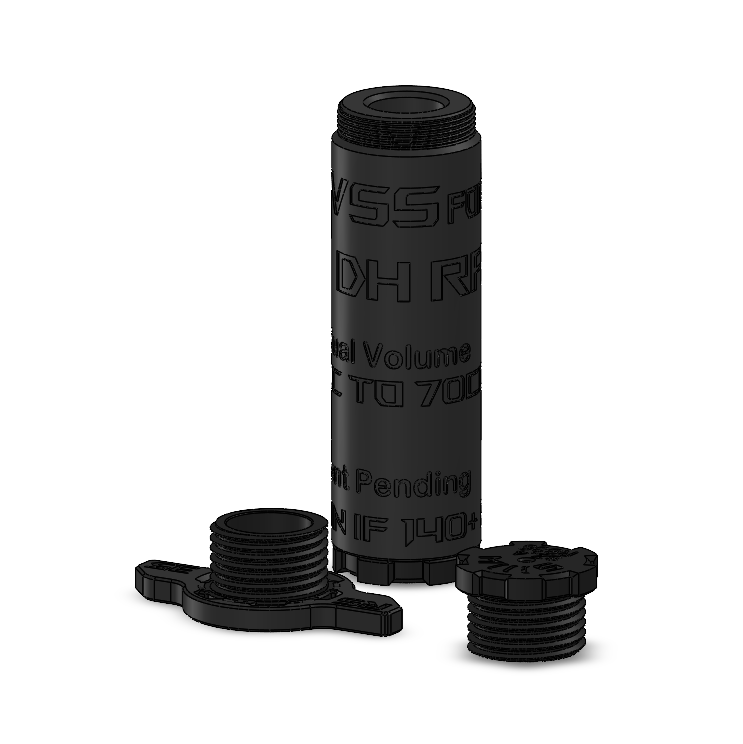

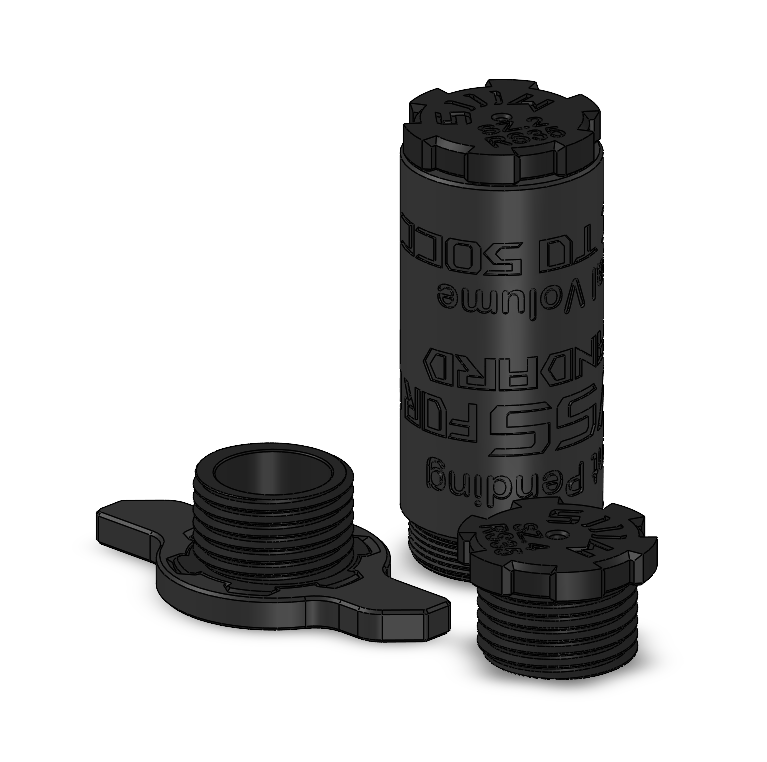

What's Included
  • 1× VSS Smart Air Token
  • Your selected nozzle
  • +1 softer nozzle
  • -1 firmer nozzle
  • Nozzle wrench

Pro tip: If you also ride a BoXXer, you'll typically need larger nozzles because of its higher operating pressure.

How It Works

Virtual volume, not physical volume. The VSS reacts to shaft speed and pressure conditions instead of acting like a traditional volume token.

  • Cruising: Plush feel, similar to 1 token.
  • Fast terrain: Builds adaptive support equivalent to roughly 3–6 tokens.
  • Hard impacts: Keeps you higher in the travel while avoiding harsh bottom-outs.

Support appears only when needed, preserving comfort and sensitivity everywhere else.

VSS Enduro vs DH Version (Important)

VSS Enduro:
The standard tune for trail, enduro, all-mountain and general riding. It provides strong adaptive support while maintaining sensitivity and allowing you to use your full travel more easily.

VSS DH:
A stronger tune designed for aggressive riding, racing, bike parks and hard impacts. The fork feels stronger and absorbs impacts more efficiently, so you may use slightly less travel at the same sag.

With the DH tune, reaching full travel can be harder, but the fork can still feel very controlled and comfortable. Running more sag while using slightly less travel can give you a more supported front end without making the fork feel harsh.

⚠️ Luftkappe compatibility:
The Vorsprung Luftkappe is NOT compatible with the VSS DH version. If you are running a Luftkappe, you must use the VSS Enduro version.

Personal note: I personally ride the DH tune. I prefer the extra support at the front and the feeling of being less exposed in the fork in the steeps, especially when running more sag. The fork absorbs impacts efficiently while staying strong and controlled.

Choose the tune based on your riding style. Use the VSS Configuration Tool to select the appropriate configuration for your fork, air spring, pressure and riding style.

Compatibility Details
  • Fits: RockShox Lyrik, ZEB, and BoXXer
  • Lyrik: 35mm
  • ZEB: 38mm
  • BoXXer: 35mm and 38mm (2024+)
  • Air springs: Solo Air, DebonAir, DebonAir+, Linear XL
  • ButterCups: Fully compatible
  • Not compatible: 32mm forks, Gold/Silver models, or Dual Position air springs

Important: The VSS token is identical across all compatible RockShox forks. Only the nozzle changes. BoXXer forks operate at significantly higher air pressures and therefore require larger nozzle sizes. Using an undersized nozzle in a BoXXer can make the fork extremely harsh and may damage the VSS. Always use the recommended nozzle for the fork you're riding.

⚠️ Running a Vorsprung Luftkappe?
Important: Luftkappe is Enduro VSS only. The Vorsprung Luftkappe is NOT compatible with the VSS DH tune. At full bottom-out, the DH VSS can contact the air spring and cause internal interference. If you are running a Luftkappe, you must use the VSS Enduro tune.

The Luftkappe also changes the air-spring curve, typically requiring higher pressure and producing a more linear spring rate with a progressive end-stroke. The VSS Configuration Tool accounts for these changes and checks compatibility and clearance before selecting the appropriate VSS setup.

→ Open VSS Configuration Tool

Common Questions

Q: Do I really need the Configuration Tool?
A: Yes. Air pressure, air spring type and riding style affect both the nozzle and VSS tune, so proper configuration is essential.

Q: Can I use this VSS in my BoXXer?
A: Yes. The VSS token is the same for Lyrik, ZEB, and BoXXer forks. Simply install the correct nozzle and configuration before riding.

Q: What happens if I use my Lyrik/ZEB nozzle in a BoXXer?
A: BoXXer forks run much higher air pressures and typically require larger nozzle sizes. Using a smaller Lyrik/ZEB nozzle can make the fork extremely harsh and may damage the VSS.

Q: Does it need maintenance?
A: No. It's made entirely from engineered plastic with no moving parts. A conservative lifespan is 2–3 years, although it will typically last much longer.

Q: Do I need to change my air pressure?
A: Usually not. Some riders choose to lower pressure slightly for additional grip.

Q: Is this just another volume token?
A: No. Unlike a traditional token, the VSS dynamically adapts its effect based on shaft speed and impact intensity.

About the nozzles: The VSS token is the same across compatible RockShox forks. What changes is the nozzle. Because BoXXer forks run significantly higher air pressures, they generally require larger nozzle sizes than Lyrik or ZEB forks. Always use the recommended nozzle for the fork you're riding.

Questions? Message us anytime.

View full details
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
E
Etienne Gauvreau

Rend la fourche progressive sans la rendre Harsh ! Fourche reste très active et super sensible au Small bumps.

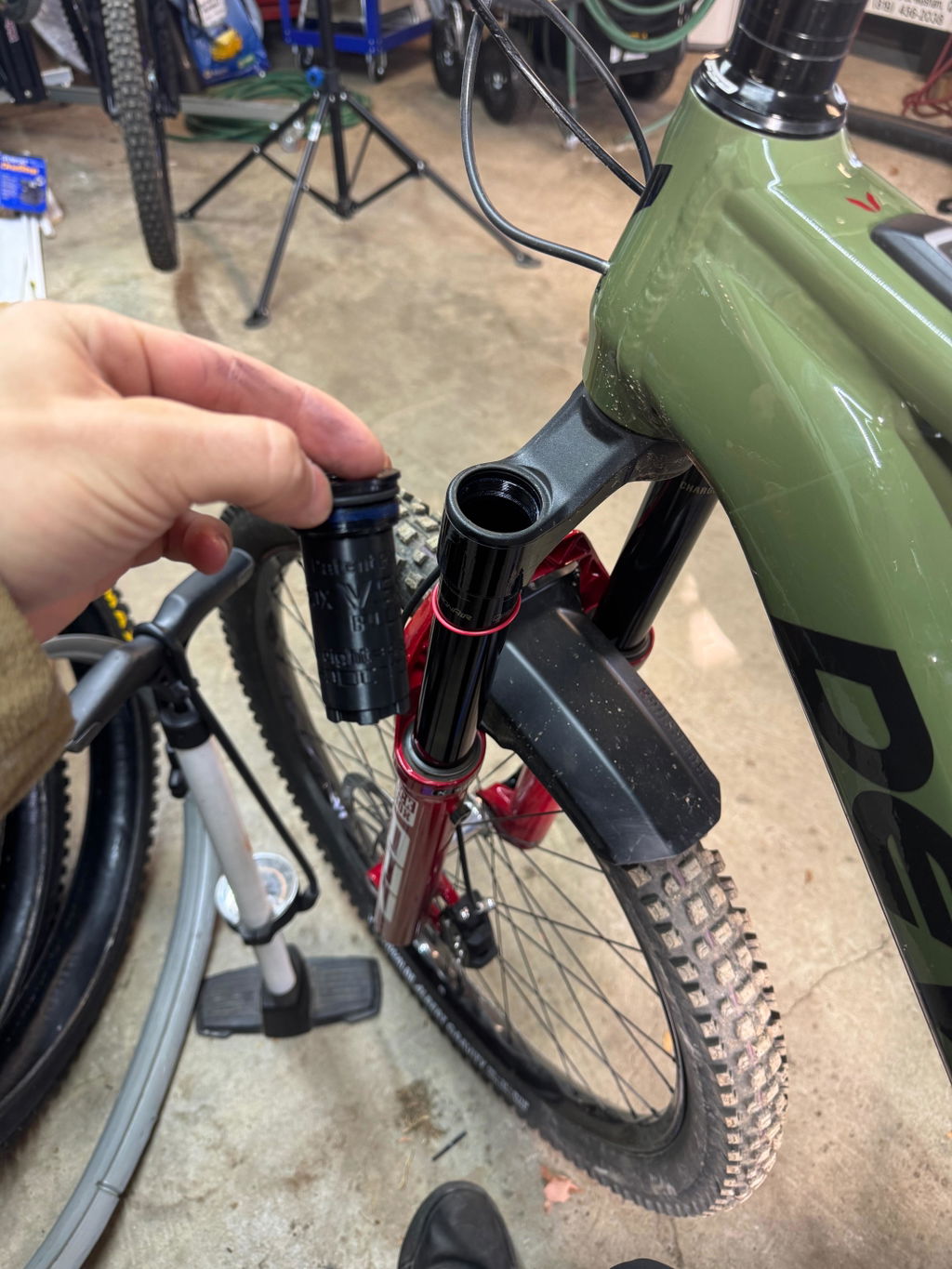

Etienne Gauvreau review photo

Yeah thanks dude! Super apprécié. Le VSS est définivement une upgrade qui vaut vraiment la peine. Le prix est vraiment accessible et ça fait une immense différence!

Plus jamais je rides de fourches sans VSS, j'ai essayé et ouf..

Bonne saison!

O
Olivier pedneault

Pour les terrains plus rough et les espaces plats ou il nécessaire de pomper, le VSS te fait gagner en vitesse en plus d’améliorer le feeling de ta fourche en général!

Merci vraiment Olivier, c'est vraiment généreux de ta part de prendre le temps de partager ton expérience. C'est super intéressant d'avoir ton opinion là-dessus!!

Effectivement, dans les sections plus pumpy où tu compresses la fourche rapidement pour générer de la vitesse, le VSS emmagasine plus d'énergie sur ces compressions rapides. Il te redonne donc plus de rebond, ce qui rend la fourche plus poppy et aide à générer de la vitesse.

Ce qui est vraiment spécial, c'est que normalement, avec un tune de compression très agressif pour la course, tu perds beaucoup de pop. La fourche est super supportée, mais elle devient moins efficace pour générer de la vitesse en pompant. Avec le VSS, tu conserves tout le support en high-speed compression dont tu as besoin pour rouler vite, tout en gardant une fourche qui pompe/pop vraiment bien. C'est un peu le meilleur des deux mondes.

Merci encore pour ton commentaire! C'est toujours super intéressant d'avoir le retour de chaque rider, parce que le VSS est un système très dynamique. Chacun interagit avec lui un peu différemment selon son style de riding, donc c'est vraiment le fun de voir les différentes impressions.

Bonne saison!
